Stator Shaft Tube,Universal w/ 245mm & 298mm,Non-Reluctor,Sonnax,82-Up,700R4,4L60-E,GM

<< Previous in Pump Assemblies,Pump Components Next in Pump Assemblies,Pump Components >>
700R4 / 4L60-E Hard Stator Support Shaft Kit
700R4 / 4L60-E Hard Stator Support Shaft KitStator Shaft Tube,Universal w/ 245mm & 298mm,Non-Reluctor,Sonnax,82-Up,700R4,4L60-E,GMStator Shaft Tube,Universal w/ 245mm & 298mm,Non-Reluctor,Sonnax,82-Up,700R4,4L60-E,GM
Price: $133.18
Part Number: TAT-77918S-K-SX
 Stator Shaft Tube (Universal w/ 245mm & 298mm) (Non-Reluctor) (Sonnax) (82-Up), 700R4, 4L60-E, GM

Current aftermarket replacement shafts are known to have several problems that can lead to transmission failure. The internal sleeve can rotate, blocking oil flow. The internal passages can cross leak. Metal chips can be hidden inside that cause transmission damage when oil flow carries them throughout the trans. The Sonnax 77918S-K & 77918S-1K kits have unique features that eliminate sleeve rotation by mechanically fastening the sleeve in place with a set screw, Loctiting the sleeve in place, and 100% leak testing assemblies.

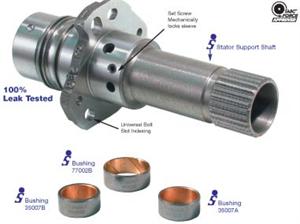

Sonnax exclusive set screw positively prevents sleeve rotation.
Sonnax exclusive assembly and testing procedures ensure reliability.
77918S-K fits all 700-R4/4L60-E up to 2004 without 280mm or 300mm torque converter. Kit comes with two front bushings to match input shaft diameter.
77918S-1K is about 1/2" longer and fits '98-'04 and newer models with 280mm or 300mm converter. Kit comes with bushings installed.
Both kits have slotted bolt holes for easy installation without any machining required.
