Tool Kit, Actuator Feed Limit Valve Kit, GM, 91-Up

<< Previous in Sonnax Next in Sonnax >>
Tool Kit for 77754-09K & 34200-16K
Tool Kit for 77754-09K & 34200-16K7775409Kand3420016KtoolkitsTool Kit for Actuator Feed Limit Valve Kit, 4L60E, 65E, 70E, 4L80E, 85E 91-Up
Price: $599.99
Part Number: SX-77754-TL

Tool Kit, Actuator Feed Limit Valve Kit, GM, 91-Up, 4L60E, 4L65E, 4L70E, 4L80E, 4L85E

The AFL valve is a solenoid feed regulator valve that feeds the EPC solenoid and shift solenoids. The OEM AFL valve design has a large reaction area and is highly affected by side loading, which wears the valve body bore. The EPC solenoid oscillates the torque signal and AFL oil, which increases valve action. As the bore wear increases, oil pressure is reduced to the shift solenoids, which causes solenoid and ratio codes. The same AFL oil loss results in lower line pressure. The improved Sonnax kit 77754-09K (4L60-E)/34200-16K (4L80E) eliminates these problems.

Features & Benefits

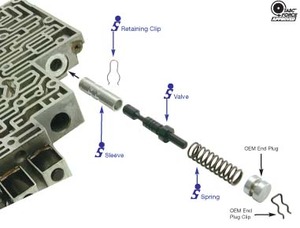

Kit includes a hard-coat anodized valve and wear-resistant sleeve to prevent wear.
Valve has annular grooves to prevent side loading and has 54% more support by operating in the full contact sleeve.
Note: Due to the valve diameter and sleeve, this repair requires a reamer and reamer guide tool kit 77754-TL, which also services the 4L80-E.

Product Reviews

(0 Ratings, 0 Reviews)
