BUSHING low clearance, 604 PUMP, QTY 5, A500/A604/A606/A670/42RLE/62TE

<< Previous in Bushings/Kits Next in Bushings/Kits >>
BUSHING 604 PUMP, QTY 5, A500A604A606A67042RLE62TE
BUSHING 604 PUMP, QTY 5, A500A604A606A67042RLE62TE12501-01instruction 12501-01
Price: $24.18
Part Number: TAT-12502-01-SX

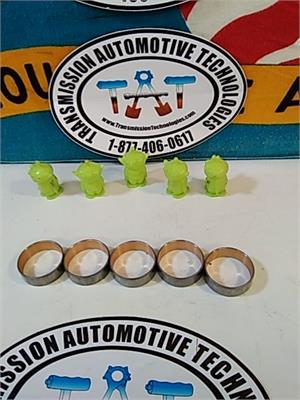

BUSHING low clearance, 604 PUMP, QTY 5, A500/A604/A606/A670/42RLE/62TE

Excessive torque converter hub-to-pump bushing clearance is a root cause of code 38, TCC slip codes, front seal leakage, loss of prime code 35, and pump noise. The OE bushing is machined in place, allowing a wide tolerance on pump housing bore diameters. Bore diameters can vary by more than .003". This wide tolerance is a problem when using standard replacement bushings. Standard replacement bushings will often have .008" or more hub-to-bushing clearance with an average 10 times more oil loss than the Sonnax improved fit bushing. The Sonnax improved fit pump bushing 12502-01 will restore the clearance necessary for proper operation. The Sonnax bushings should be used when the housing diameter is greater than 1.6175", which will be in most cases.

Allows precision clearances with wide tolerance pump bushings.

Does not require machining to restore correct clearance.


Bushing Style: Precision

Material: Steel-backed bimetal

Width: 0.535"

Shaft Dia.: 1.498"

Housing Bore: 1.619"
