Shell, Reaction Sun, 4L60,4L60E,4L65E,4L70E,82-UP

<< Previous in Sonnax Next in Sonnax >>
 Smart Shell- 4L60/4L60E/4L65E/4L60E - GM
 Smart Shell- 4L60/4L60E/4L65E/4L60E - GMShellReactionSunTheSmartShellSonnax82UpShellReactionSunsmartshell4L60e
Price: $160.99
Part Number: TAT77749-02KSX
Shell, Reaction Sun, 4L60,4L60E,4L65E,4L70E,82-UP

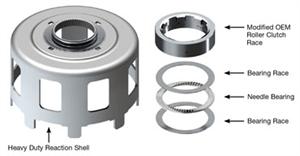

The SmartShell 77749-02K is a heavy duty reaction shell kit with revised thrust loads. Stripped or cracked shells are a problem in 4L60/E units, however an equally common problem is a failed rear planet captured bearing. The SmartShell is the only heavy duty shell to address both issues. The SmartShell is made of thicker material and the hub area is strengthened further with a steel collar that is precision welded to the shell. The splines are heat treated with a tested process to ensure strength and longevity. The lugs that engage the reverse drum are heat treated as well to avoid flaring. By replacing the black plastic washer with a thrust bearing and controlling the height of the modified OE race, the SmartShell reroutes thrust loads away from the captive planet bearing and sun gear. The rerouted end play/thrust loads pass through the new thrust bearing and modified roller clutch race directly to the rear planet carrier, completely bypassing the vulnerable captive planet bearing.

Features & Benefits

High strength shell kit
Added bearing takes load off planet bearing
Improved rear planet durability
